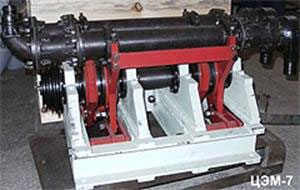

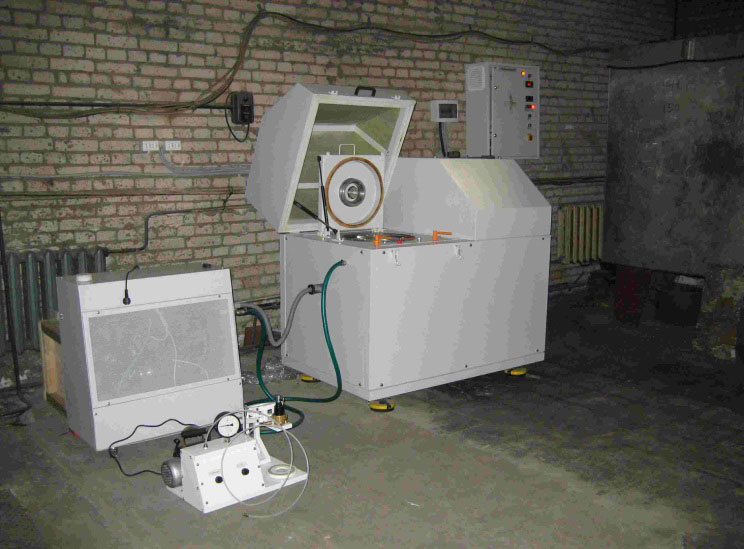

TECHNICAL CHARACTERISTICS | CEM-7 | CEM-20 |
Operational mode | Continuous or discrete | |
Power of the electric motor, kW | 5 | 18 |
Productivity in continuous mode ( e.g. for sand), kg/hour | 20-50 | 850-1200 |
The maximum initial size of material particles, mm | 3 | 5 |
Size of particles after milling, mm | 5-20 | 10-60 |
Overall dimensions (length/ width/ height), mm: | 700/540/420 | 1910/1225/870 |
Weight, kg | 235 | 1300 |
Weight, kg | 235 | 65 |
Full milling time (up to 1-5 microns) – from 30 sec.(!) up to 5 minutes.
The important advantage of these mills is the very intensive water cooling that prevents the milling material from overheating typical for conventional planetary mills.

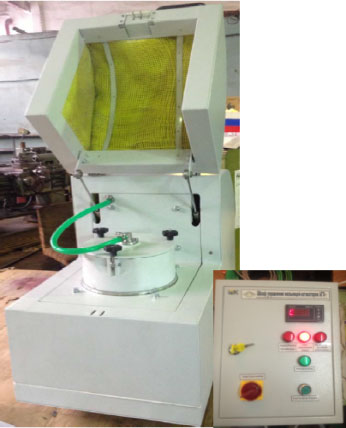

Can be delivered with a touch-screen control panel.
Institute of Solid State Chemistry and Mechanochemistry SB RAS
Kutateladze str., 18 Novosibirsk, 630128 Russia
Phone: +7(383)332-53-44
Fax: +7(383)332-28-47
E-mail: root@solid.nsc.ru
